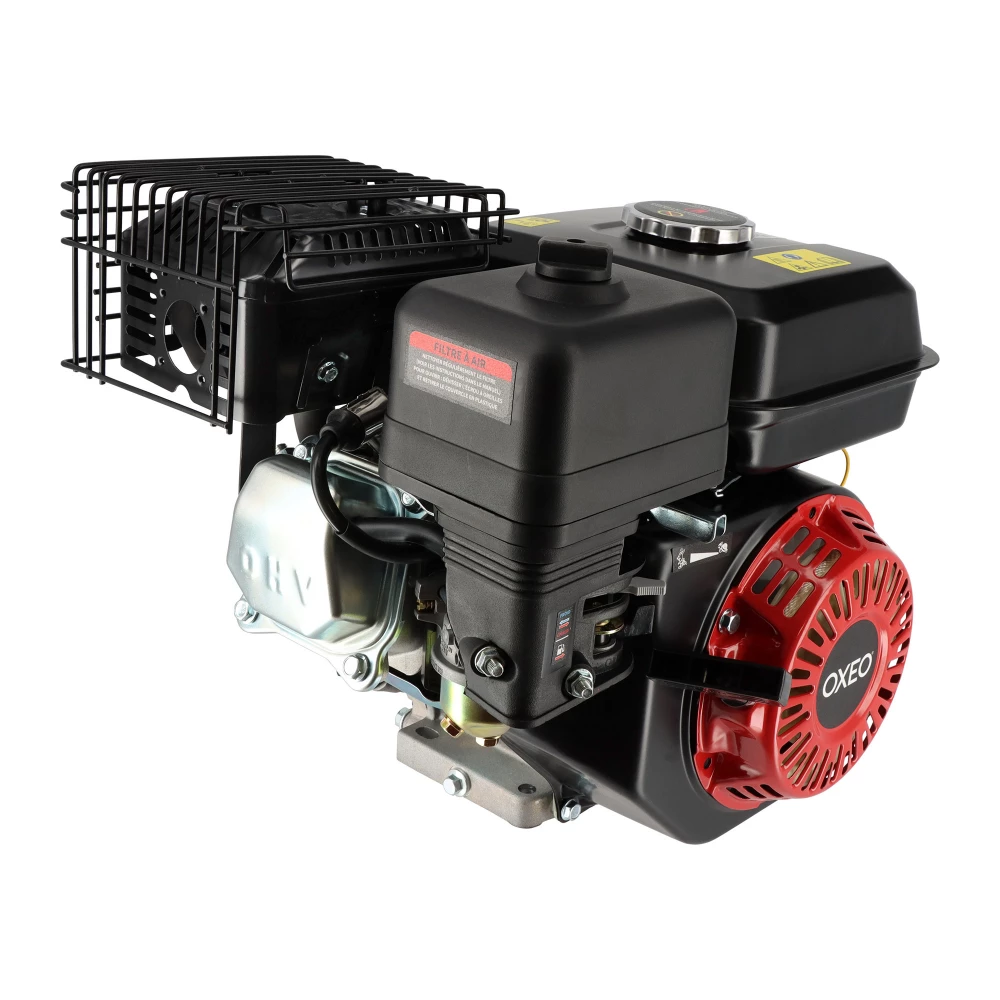

7HP 4-stroke combustion engine
The 7HP 4-stroke combustion engine is essential for efficiently powering your construction, agricultural or leisure machinery. Robust, powerful and safe thanks to its integrated oil alarm system.
The 7HP 4-stroke combustion engine with a 19.05mm diameter shaft is reliable, powerful and versatile. With a displacement of 210 cm³ and an air-cooled OHV single-cylinder configuration, it delivers high performance while maintaining a stable operating temperature.
It is ideal for powering motor pumps, generators, motorised wheelbarrows, concrete mixers, sweepers, snow blowers, agricultural equipment and leisure equipment (mini buggies, go-karts).
Safety is ensured by the OSAS system, which automatically shuts down the engine if the oil level is too low, thus preventing internal damage. The system is triggered even if the switch remains in the ON position. Starting is easy thanks to a manual return system.
The silencer and ultra-fine air filter ensure clean operation with less noise.
With its 3.6-litre tank and compatibility with SP95 or SP98 (E10) petrol, this engine offers comfortable autonomy for extended work.
DIY enthusiast's opinion
This 7HP 4-stroke combustion engine is ideal as a replacement engine for operating a water pump, compactor or log splitter, for example. It starts easily, even when cold. The noise level is kept down thanks to the silencer. The alarm system is a real bonus for avoiding unpleasant surprises in the event of low oil levels.
Technical specifications
Ideal for equipping or replacing engines in:
Vibratory plates, rammers
Motor pumps
Motorised wheelbarrows, mini-dumpers
Generators
Ride-on mowers, brush cutters
Karts, mini-buggies
Log splitters
Concrete mixers, rotary cultivators, rotary tillers
Specifications:
Model: 170F – single cylinder
Type: 4-stroke, OHV, air-cooled
Displacement: 210 cm³
Max. power: 7.0 HP (≈ 5.1 kW)
Rated power: ≈ 5.5 HP (≈ 4.0 kW)
Max. speed: 3,600 rpm
Idle speed: 1,800 rpm
Shaft: diameter 19.05 mm
Fuel: SP95, SP98 or E10 petrol
Fuel tank capacity: 3.6 L
Oil tank capacity: 0.6 L
Recommended lubricant: 4T SF 10W30 / 10W40 / 15W30 / 15W40 oil
Safety: low oil sensor (OSAS)
Spark plug: type F6TC / NHSP LD / P6RTCU or equivalent
Weight: approx. 17 kg (empty tank)
