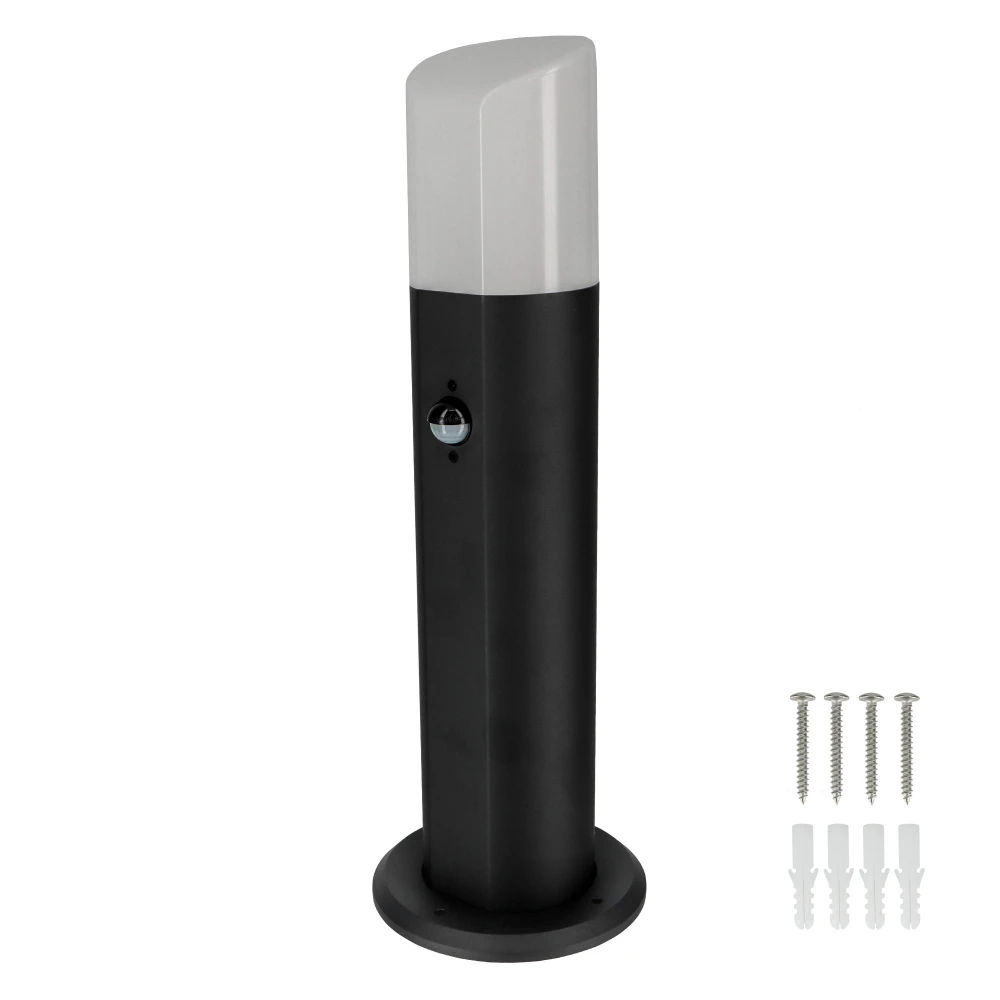

Outdoor lighting post with motion sensor, height 45cm

The outdoor lighting post with motion sensor combines ambient lighting with automatic activation to enhance the user experience in your outdoor spaces. At 45 cm high, it fits easily along a path, around a patio, in a garden, near a pergola or around the house.

Its built-in motion sensor has a detection angle of 100° and an adjustable range of between 1.5 and 7 metres. This allows the post to switch on automatically when movement is detected within its monitoring zone.

To adapt its operation to the layout of your property and your habits, the sensor offers three types of settings: detection distance, lighting duration and twilight threshold. The delay can be adjusted between 5 seconds and 8 minutes, allowing you to choose how long the bollard remains lit after a detection. The twilight threshold setting allows you to adjust the motion detector’s activation in relation to outdoor light levels. The settings are easily adjusted using three adjustment screws.

Designed to withstand outdoor conditions, the bollard light features a robust, corrosion-resistant die-cast aluminium body. Its light-emitting section is protected by a white polycarbonate diffuser, a material suited to extreme temperature fluctuations.

Its IP54 rating provides limited protection against dust ingress and protection against water splashes from all directions.

The post is fitted with an E27 socket and is compatible with a bulb of up to 25 W. As the bulb is not supplied, you can choose the wattage and colour temperature that best suit your desired atmosphere: warm light for a cosy terrace or a more neutral tone for marking out a path, for example.

The installation is also designed to make connection easy. The terminal block has 2 inputs for the live wire, 2 for the neutral and 2 for the earth, with a protective rubber cover. This configuration allows several terminals to be connected in series, which is handy for creating uniform lighting along a path or around a patio.

DIY enthusiast’s review

This outdoor lighting post with a motion sensor combines outdoor wayfinding with automatic lighting. The sensor is adjustable, which is very practical, as it can be easily adapted to the installation environment. The E27 socket is also a welcome feature, as it avoids reliance on a built-in LED source and allows you to choose the bulb according to the desired light output. Finally, the dual connection in the terminal block is ideal when installing several posts in series along a path.

Technical specifications

Product type: outdoor lighting post with motion sensor

Materials: die-cast aluminium body + polycarbonate cover

Colour: RAL 7021 – dark grey

Dimensions: 150 x 150 x 450 mm

Power supply: 100–240 V – 50/60 Hz

Shut-off delay (adjustable): 5 seconds to 8 minutes

Detection angle: 100°

Adjustable detection range: 1.5 m – 7 m

IP54: Limited protection against dust ingress. Protection against water splashes from any direction.

Bulb not included: Use an E27 bulb, max. 25 W

Terminal box with protective rubber cover.

Terminal block: 2 neutral inputs, 2 live inputs and 2 earth inputs

Series connection: yes, via the dual connection

Weight: 1.32 kg

Applications: garden, patio, driveway, pergola and around the house
