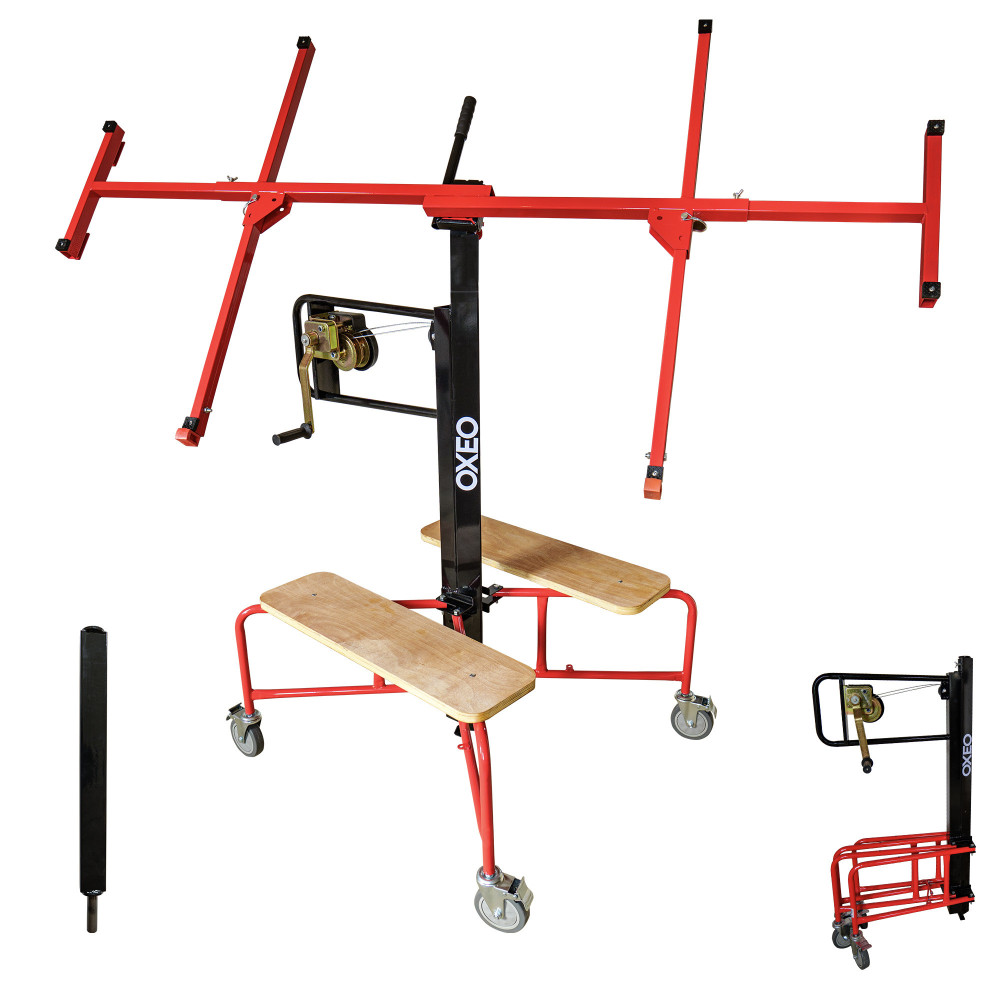

Professional plasterboard lifter

The professional plasterboard lift is an essential tool for all plasterboard installation work at height, whether for straight or sloping ceilings or vertical partitions.

The 360° rotating panel allows easy handling of the boards in all directions. Full rotation facilitates precise alignment of the boards, even in hard-to-reach areas, and significantly reduces the physical effort required during installation.

The panel lift is equipped with two extendable arms, offering great adaptability depending on the dimensions of the boards to be installed. These arms allow the support to be adjusted perfectly to the required width, ensuring optimum stability during lifting.

For work under sloping roofs, the lower arm is cleverly equipped with two special hooks, designed to hold the panel in an inclined position, greatly facilitating installation in sloping areas while ensuring maximum safety for the user.

The two platforms support up to 150 kg, allowing you to gain height to facilitate the screwing of the panels.

The lifting system is based on a double cable winch equipped with an automatic brake, ensuring controlled raising and lowering of the panels without excessive effort.

The four swivel wheels with brakes allow for smooth movement and secure locking once in place.

The sturdy lacquered steel frame ensures excellent durability on site.

Conveniently, once the platforms are dismantled, it can be folded up completely for storage or to easily pass through doors from one room to another.

DIY enthusiast's opinion

Very good stability, easy to assemble. The multiple positions for placing plasterboard, including under sloping ceilings thanks to the two hooks, are very practical. The double cable winch system with automatic braking is essential for safety.

Technical specifications

Rotation of the apron: 360°

Maximum lifting height: 3.45 m (4.00 m with 50 cm extension)

Minimum lifting height: 1.45 m

3 possible installation positions:

Horizontal up to 4.00 m (with extension, 3.45 m without extension)

Under sloping ceilings up to 3.35 m

Vertical

Control lever for changing the angle of the apron

Deployable stabilisers with 3 positions: 60 cm, 90 cm or 120 cm

2 adjustable extendable arms

2 cross arms

8 support points, including a lower arm equipped with 2 hooks for installation under a sloping roof

Double cable winch with automatic fall arrest brake

Cable diameter: 3 mm

Composition: 7 × 19 wires

Effective breaking load: 5.75 kN

Double cable: lifting + safety

4 x 360° swivel wheels with brakes

Sturdy lacquered steel frame

2 removable wooden work platforms – maximum load: 150 kg

Foot-level retaining hooks to lock the wheels in the folded position when moving

Maximum lifting load: 68 kg

Total weight: 46 kg
