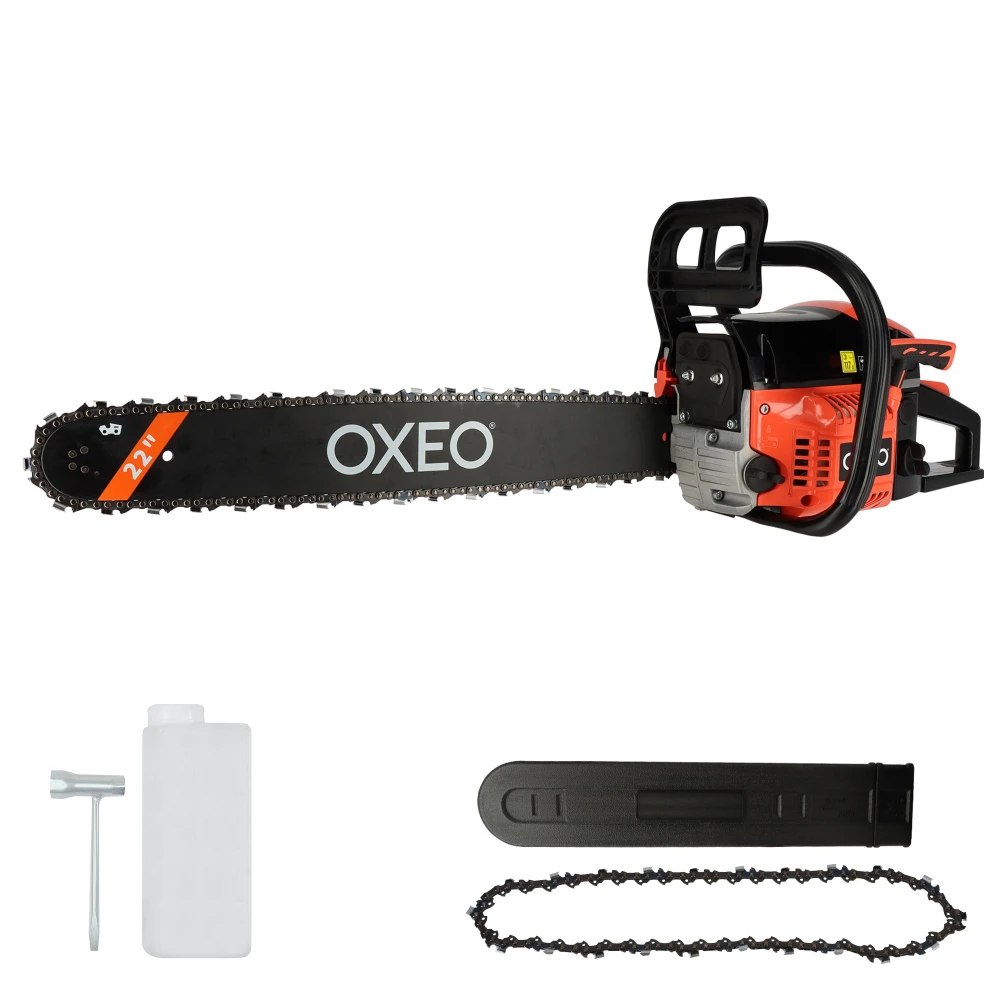

Petrol chainsaw - 62 cm³ displacement

The 62 cm³ petrol chainsaw is equipped with a 62 cm³ air-cooled 2-stroke engine, reaching a maximum power of 2.85 kW at 8,500 rpm and an engine speed of 10,300 rpm, providing a clean and fast cut on all types of wood.

Its large 22-inch (55 cm) guide bar provides a useful cutting length of 55 cm, making it ideal for felling large-diameter trees.

For extended use without interruption, the machine comes with 2 chains (0.325‘ pitch, 0.058’ gauge). The automatic lubrication system ensures constant protection of the chain and guide bar while facilitating maintenance. The flow rate can be adjusted via a screw under the clutch cover.

The air filter is easily accessible on the top of the machine via a cover that can be unscrewed without tools, simplifying cleaning and regular checks.

The chainsaw has a large 550 ml fuel tank and a 260 ml chain lubrication oil tank. To operate the combustion engine, regular SP95 petrol and 2-stroke engine oil must be mixed (2.5% mixture). Starting is made easy by a non-slip dual-material starter, even in cold or wet conditions. The on/off switch is made of sturdy steel.

On the safety side, the chainsaw is equipped with an automatic chain brake that activates in the event of kickback, reducing the risk to the user.

Gardener's opinion

This petrol chainsaw combines power and ease of use. The long guide bar increases efficiency, making it easy to cut even hard wood and thick trunks. The automatic lubrication system and easy access to the air filter are really handy during intensive use.

Technical specifications

Engine type: 1E48F (air-cooled, 2-stroke)

Displacement: 62 cm3

Maximum power: 2.85 kW at 8500 rpm

Engine speed: 10,300 rpm

Idle speed: 3,000 ± 300 rpm

Maximum chain speed: 19.3 m/s

Spark plug: TORCH L7T / NGK BPM7A

Carburettor: Diaphragm type

Fuel tank capacity: 550 ml

Petrol/oil mixture ratio: Petrol 40 : Oil 1

Oil tank capacity: 260 ml

Lubrication system: Automatic pump with adjustment

Guide bar: 22" model ZLB22-86-5812P - Length 55 cm

2 chains included: 22‘ chain, 0.325’ pitch, 0.058" (1.5) gauge, model B-58-85

Sprocket: 7 teeth x 8.255 mm

Weight (without guide or chain, empty tank): 5.7 kg

Useful cutting length: 56 cm

Screw tension adjustment

Easy-access air filter on top for easy cleaning

Non-slip dual-material starter handle

Self-priming

Steel switch

Automatic chain brake

Guaranteed noise level (2000/14/EC) LwA: 117 dB(A)

Vibrations at front handle: 9.41 m/s², k = 1.5 m/s²

Vibrations at rear handle: 8.80 m/s², k = 1.5 m/s²

Fuel consumption at maximum power: 1.18 kg/h

Carburettor adjustment tools included

Protective case for chain guide
